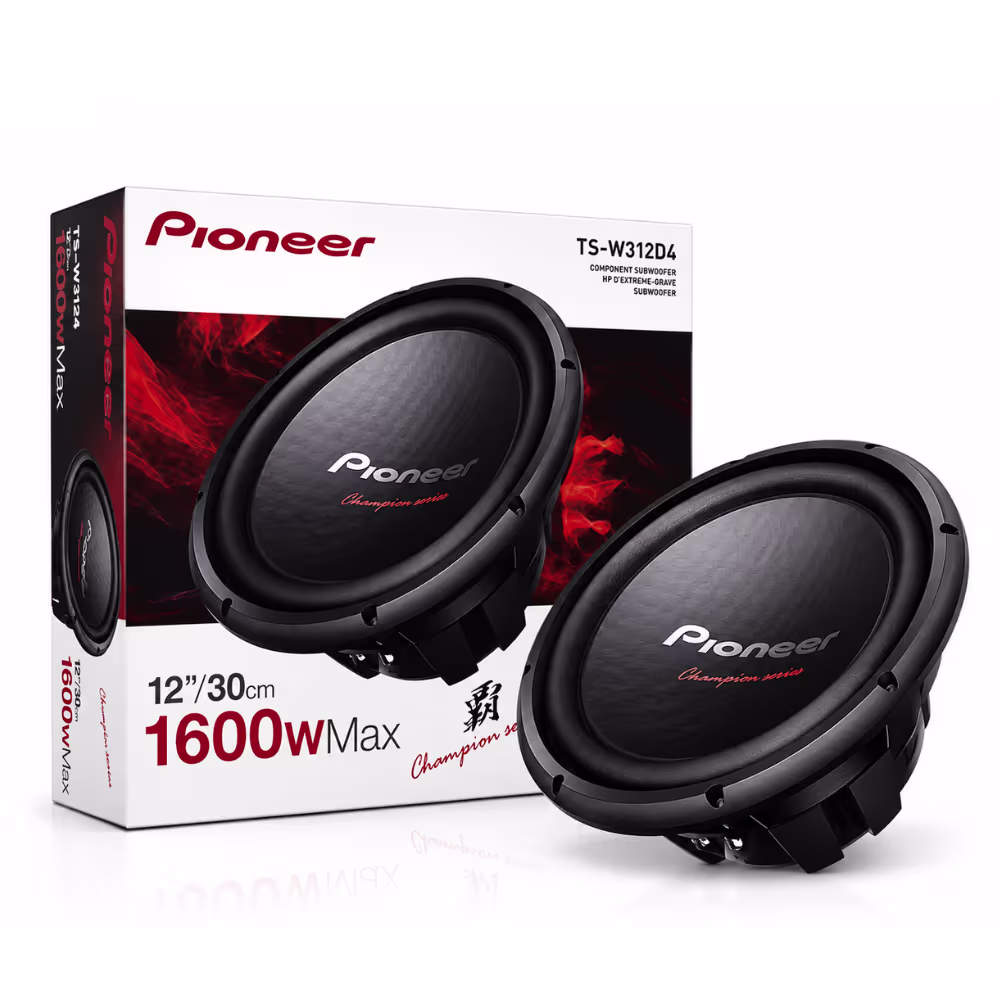

- PIONEER TS-W312D4 CHAMPION SERIES 12-INCH 1600W MAX CAR SUBWOOFER
The Pioneer TS-W312D4 is a high-performance 12-inch Champion Series car subwoofer engineered to deliver powerful bass, high power handling, and flexible installation options. Ideal for upgrading factory or aftermarket car audio systems.
SPECIFICATIONS
🟢 Speaker Size: 12 Inch (30 cm)
🟢 Model: TS-W312D4
🟢 Maximum Power: 1600 Watts
🟢 Continuous Power (RMS): 500 Watts
🟢 Voice Coil: Dual 4Ω (DVC)
🟢 Impedance: 4Ω + 4Ω
🟢 Sensitivity: 92 dB (±1.5 dB)
🟢 Frequency Response: 20Hz – 1.6kHz
🟢 Cut-Out Diameter: 283 mm
🟢 Recommended Enclosure:
Sealed Box
Ported Box
🟢 Suitable For:
Car Audio Systems
Bass Upgrade
SQ & SPL Builds
Sedan, SUV & Pickup Installations
Key Features
✅ 1600W Maximum Power Output
✅ 500W RMS Continuous Power
✅ Champion Series High Performance Design
✅ Dual 4Ω Voice Coil for Flexible Wiring
✅ Deep & Punchy Bass Response
✅ High Sensitivity (92dB)
✅ Durable Cone & Suspension
✅ Compatible with Most Car Audio Amplifiers
