Powerful Dual-Tone Sound for Clear Road Communication

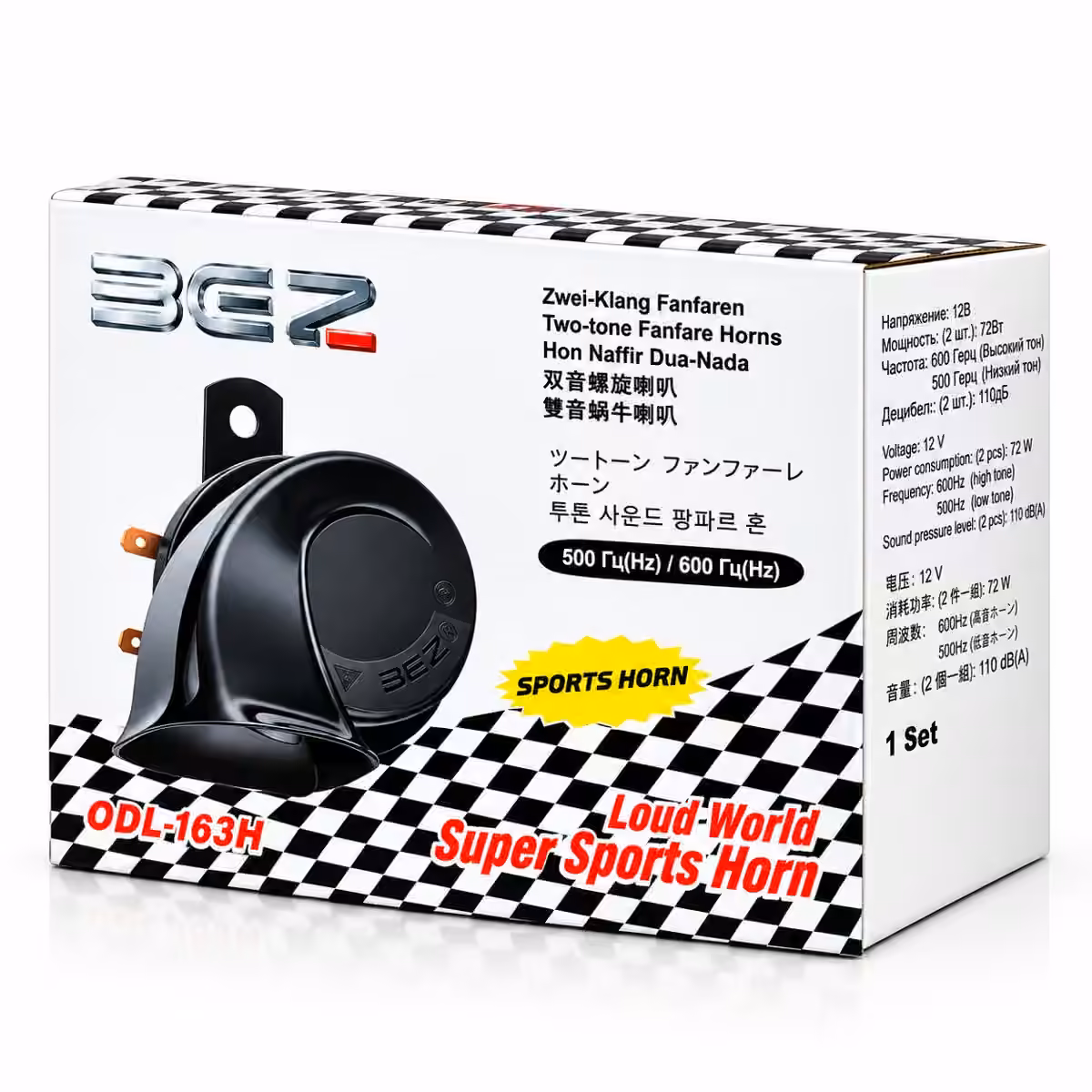

BEZ Snail Universal Sports Horn 500Hz & 600Hz is a 12V automotive horn system designed to produce a strong, distinctive dual-tone warning sound.
Featuring separate high-frequency and low-frequency horn units, the system combines nominal 600Hz and 500Hz tones to create a fuller audible warning compared with a single-tone horn.
Its snail-style housing is designed for automotive installation, while its stated operating voltage range supports use in compatible 12V vehicle electrical systems.
Key Features and Benefits
Powerful 115±5 dB(A) Sound Output
Designed to deliver a strong audible warning for road communication. Actual measured sound levels may vary depending on installation and testing conditions.
Dual-Tone Horn System
Combines a high-tone 600Hz horn with a low-tone 500Hz horn to produce a distinctive two-tone sound.
12V Automotive Compatibility
Designed for compatible 12V vehicle electrical systems.
Wide Operating Voltage Range
Supports an operating voltage range of 9V–16V according to the supplied technical specifications.
Horn Design: Snail-Style
🟢 Rated Voltage: 12V DC
🟢 Operating Voltage: 9V–16V DC
🟢 Operating Current: ≤4A per Horn
🟢 Combined Maximum Current: Up to 8A for Two Horns
🟢 Sound Level: 115±5 dB(A)
🟢 High-Tone Frequency: 600Hz ±20Hz
🟢 Low-Tone Frequency: 500Hz ±20Hz
🟢 Nominal Horn Diameter: 80 mm
🟢 Listed Weight: 700 g — confirm whether per unit or complete set
🟢 Operating Temperature: -40°C to +85°C
🟢 Weather Protection: Manufacturer-described waterproof; IP rating not provided
🟢 Vehicle Electrical System: Compatible 12V DC Systems
🟢 Mounting: Vehicle-specific mounting verification required
🟢 Electrical Installation: Relay and fuse compatibility must be checked
🟢 Country of Origin: China
🟢 Replacement Guarantee: 1 Year
🟢 Replacement Limit: Maximum 1 Approved Replacement
🟢 Package Configuration: High-Tone and Low-Tone Horn Pair — confirm actual package contents
